Thin Foam Tape

Ultra Thin Foam Tapes + Thin VHB Tapes

3M™ VHB™ Thin Foam Tapes are thin tapes with pressure sensitive adhesive on both sides and are used for bonding a wide range of materials, including many paints and lower surface energy plastics in addition to metals and other plastics.

3M Product


Inch (mm)

5906 0.006"  (0.15) Black Gleicher can cut the tapes to size so send us your dimensions and quantity for a free estimate.
5907 0.008"  (0.20) Black
5908 0.010"  (0.25) Black
5909 0.012"  (0.30) Black


The foam is conformable to increase contact with the surfaces. This tape is similar to other products in the 3M™ VHB™ Tape 5952 family except thickness.

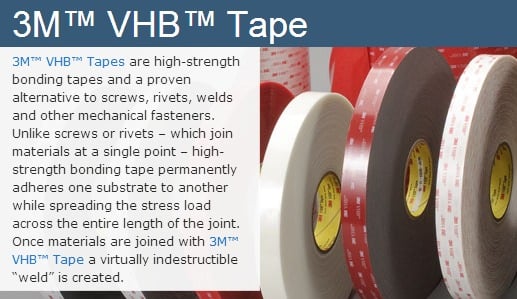

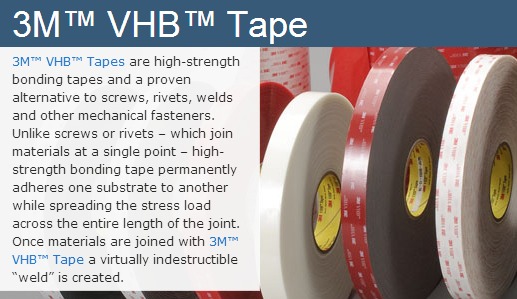

3M™ VHB™ Tape Intro Graphic


Application Guidelines

Prepare surface For maximum bond strength the surfaces should be thoroughly cleaned with a 50:50
mixture of isopropyl alcohol and water. Consult manufacturers directions for use and
precautions when using cleaning solvents.

Ideal tape application is accomplished when temperature is between 21°C and 38°C (between 70°F and 100°F) and the bond is allowed to dwell 72 hours. Initial tape application to surfaces at temperatures below 10°C (50°F) is not recommended.

Gleicher_Die_Cuts_see_tabs_perforations_smartliner (1)


For Assembly-Ready Parts

  • Cutting - Laser, Flatbed, Rotary
  • Individual Pieces, Multi-piece Pads, Kisscut in Rolls, Kits
  • Liners - Tabs, Perforated, Registration, Extended, Split
  • Laminate with Adhesive - Multi-layer, Wide Web
  • Slitting - Wide to Narrow
  • Pre-production parts start $250
  • (888) 818-5798 or

Need More Information?

Contact us for more information, sample part or free estimate!

Get a Sample
